1.3 Inch 240x240 IPS LCD Full Colour Display Module with ST7789 Controller and Dual Interface

This compact 1.3-inch display module provides electronics enthusiasts and developers with a high-quality visual interface for their projects. Featuring an IPS (In-Plane Switching) LCD panel, it delivers superior colour reproduction and wider viewing angles compared to conventional TFT displays. The square 240x240 pixel resolution offers clear, sharp imagery suitable for data visualisation, sensor readouts, or simple graphical user interfaces. With both parallel and SPI interface options, this module can integrate with a wide range of microcontrollers and development boards, from Arduino platforms to Raspberry Pi projects and custom electronics designs.

Features and Construction

The display module combines several practical features that make it suitable for various electronics applications. Its design focuses on providing reliable performance while maintaining flexibility in how it can be implemented within different project configurations.

Material and Build

The core component is a high-definition IPS colour screen, which utilises In-Plane Switching technology. This technology allows for better colour accuracy and wider viewing angles than standard TFT LCD panels, making the display more versatile for different viewing positions. The IPS panel is controlled by an ST7789 driver chip, which manages the display signals and timing requirements. The module's construction includes an 18-pin connector interface that accommodates both communication protocols.

Size and Practical Fit

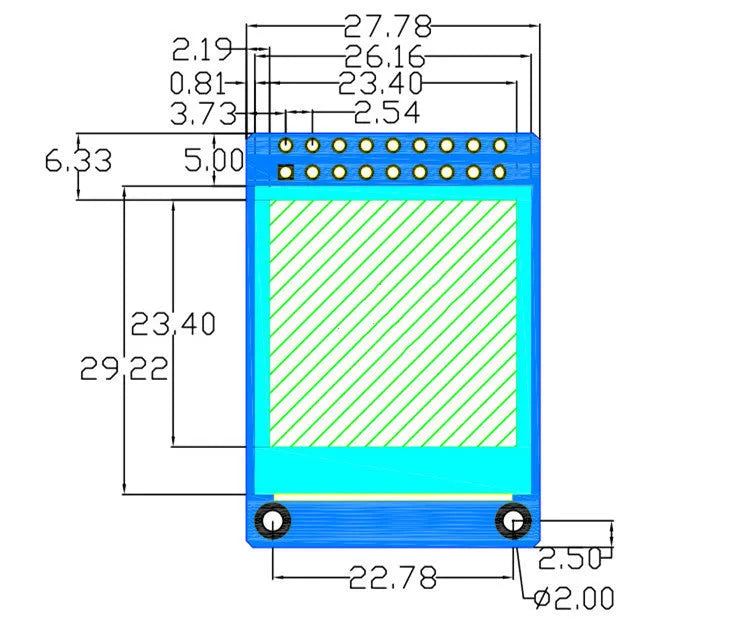

The module features a compact physical footprint measuring 27.78mm in width by 39.22mm in height, allowing it to fit within space-constrained project enclosures. The actual display area measures 23.4mm square, providing a well-utilised screen space relative to the overall module dimensions. This efficient use of space means you get a substantial viewing area without excessive bulk, making it suitable for portable devices or compact instrumentation.

Uses and Placement

The display module's specifications make it appropriate for various applications, from hobbyist projects to more specialised professional uses. Its temperature tolerance and interface options expand its potential implementation scenarios.

Event or Professional Use

For professional or commercial applications, the module's -20°C to 70°C operating temperature range allows deployment in environments with temperature variations, such as outdoor monitoring stations, automotive displays, or industrial control panels. The full viewing angle capability ensures readability from different positions, which is valuable in installations where viewers may approach from various directions. The adjustable display direction feature lets you orient the screen content appropriately for your specific mounting configuration.

Everyday Home Use

For home electronics projects, this display serves well in smart home interfaces, weather stations, digital clocks, or gaming peripherals. The vivid IPS colour reproduction enhances visual appeal for decorative or informational displays. The dual interface support means you can connect it to popular development boards regardless of whether they favour parallel or SPI communication, providing flexibility for Arduino, Raspberry Pi, ESP32, or other microcontroller projects.

Benefits and Buying Value

Choosing this display module brings specific advantages based on its technical specifications and construction. These benefits stem directly from the components and design choices documented in the product specifications.

Reuse and Low Maintenance

The module's standardised interface and reliable operation across temperature variations support reuse in multiple projects over time. Unlike some displays with proprietary connectors, the 18-pin interface uses common pin spacing that accommodates standard header pins. The IPS technology's wider viewing angles and colour consistency mean the display maintains its visual quality from different positions, reducing the need for precise alignment in final installations.

Why Choose This Product

This display module offers a balance of visual quality and technical flexibility. The IPS panel provides better colour reproduction than basic TFT displays, while the dual interface options accommodate different microcontroller capabilities. The square 240x240 resolution is particularly suited for displaying symmetrical information or creating compact graphical interfaces. When you need a small but capable colour display for electronics projects, this module delivers the core specifications without unnecessary complexity or cost.
