VHS to DVD Converter USB Capture Card Convert Analogue Video to Digital Format PC

This VHS to DVD converter and video capture card enables you to transfer analogue video from VCRs, camcorders, DV camcorders, DVD players, and security cameras directly to your PC through a standard USB port. By turning your computer into a versatile video recording and editing workstation, it solves the problem of how to preserve ageing video tapes or integrate analogue feeds into a digital workflow. The package includes professional video editing software to help you edit, organise, and burn your captured footage to DVD, all while maintaining synchronised audio and video. Whether you need to create digital backups of family memories, capture footage for creative projects, or set up a simple surveillance monitor, this adapter offers a straightforward, plug-and-play solution.

Features and Construction

The device offers a practical set of inputs and outputs for connecting diverse analogue video sources, with software support that covers common video systems and formats. Its compact design is powered entirely from the USB port, reducing cable clutter.

Video Input and Compatibility

The adapter provides one S-Video input and one composite RCA video input, allowing connection to a wide range of devices such as VCRs, camcorders, video game consoles, and CCTV cameras. It supports worldwide video systems including NTSC, PAL and SECAM, so it works with equipment from different regions. A built-in video source switcher lets you instantly switch between composite and S-Video inputs without unplugging cables.

Resolution and Frame Rate

When connected via USB 2.0, the device delivers full-screen DVD resolution up to 720x480 at 30 frames per second for NTSC, and 720x576 at 25 fps for PAL. With USB 1.1, output resolution reaches 320x240 (NTSC) or 320x288 (PAL). This ensures usable quality for archiving standard-definition analogue material.

Capture and Format Support

The device supports all major video capturing and recording formats including DV, MPEG-1, MPEG-2, MPEG-4 with DivX codec, SVCD/VCD, DVD, AVI, and WMV. You can adjust the MPEG bit rate up to 10000 Kbps, and control colour settings such as brightness, contrast, saturation, hue and sharpness. A snapshot button lets you capture still images as BMP or JPEG files.

Uses and Placement

This capture card fulfils several common home and professional video tasks, from converting old VHS tapes to creating a PC-based video surveillance system. Its simple connection process means you can set it up in minutes.

Converting Video Tapes to Digital Format

The primary use case is converting VHS or Video8 tapes to digital video files stored on your PC hard drive. With the included Ulead Video Studio 10.0 SE DVD software, you can capture, trim, add transitions, and burn your edited movies to DVD. This helps preserve analogue footage that degrades over time, making it accessible on modern screens and devices.

Video Surveillance and Conferencing

The device can also serve as a video surveillance interface – connect any security CCTV camera or camcorder to turn your computer into a monitoring station. For video conferencing, you can connect a camcorder or video camera to broadcast live audio and video feeds through messaging services like NetMeeting, MSN Messenger, Yahoo Messenger, or ICQ (video conferencing software not included, but free downloads are available).

Everyday Entertainment and Gaming

Beyond capture, you can use this adapter to play video games from consoles like the original PlayStation or N64 on your PC monitor. The resizable video window allows full-screen display, making it a flexible way to route analogue video through your computer for entertainment.

Benefits and Buying Value

This converter provides a cost-effective, single-device solution for digitising analogue video without needing dedicated hardware recorders or expensive capture cards. Its USB-powered design and compatibility with multiple video systems add convenience.

Simple Setup and Power

The device is powered entirely through the USB port (5VDC, 250mA max), so no separate power adapter is required. Installation takes only minutes – connect the adapter, install the software from the included CD-ROM, and you are ready to start capturing. The green LED power indicator confirms the device is active.

One Device, Many Functions

Being able to capture video, record still images, switch between inputs, and adjust colour settings means this single adapter replaces several separate tools. It works with both USB 2.0 and USB 1.1, ensuring compatibility with older PCs while offering better resolution on newer machines.

Durable and Practical Design

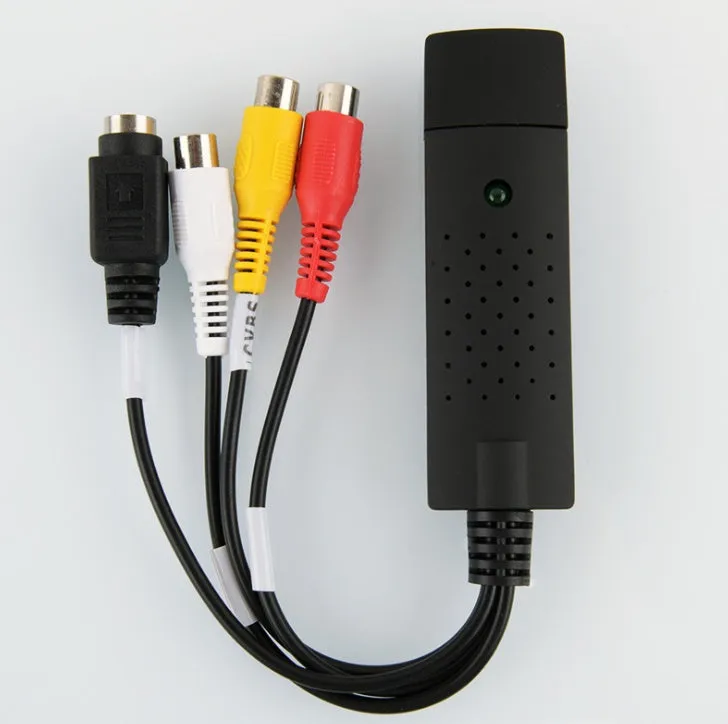

Measuring just 88mm x 28mm x 18mm, the adapter is compact enough to keep near your computer without taking up space. The straightforward interface panel makes S-Video and RCA connections easy to reach. Backed by a standard one-year warranty (if applicable), it offers a reliable way to bring analogue video into the digital age.
