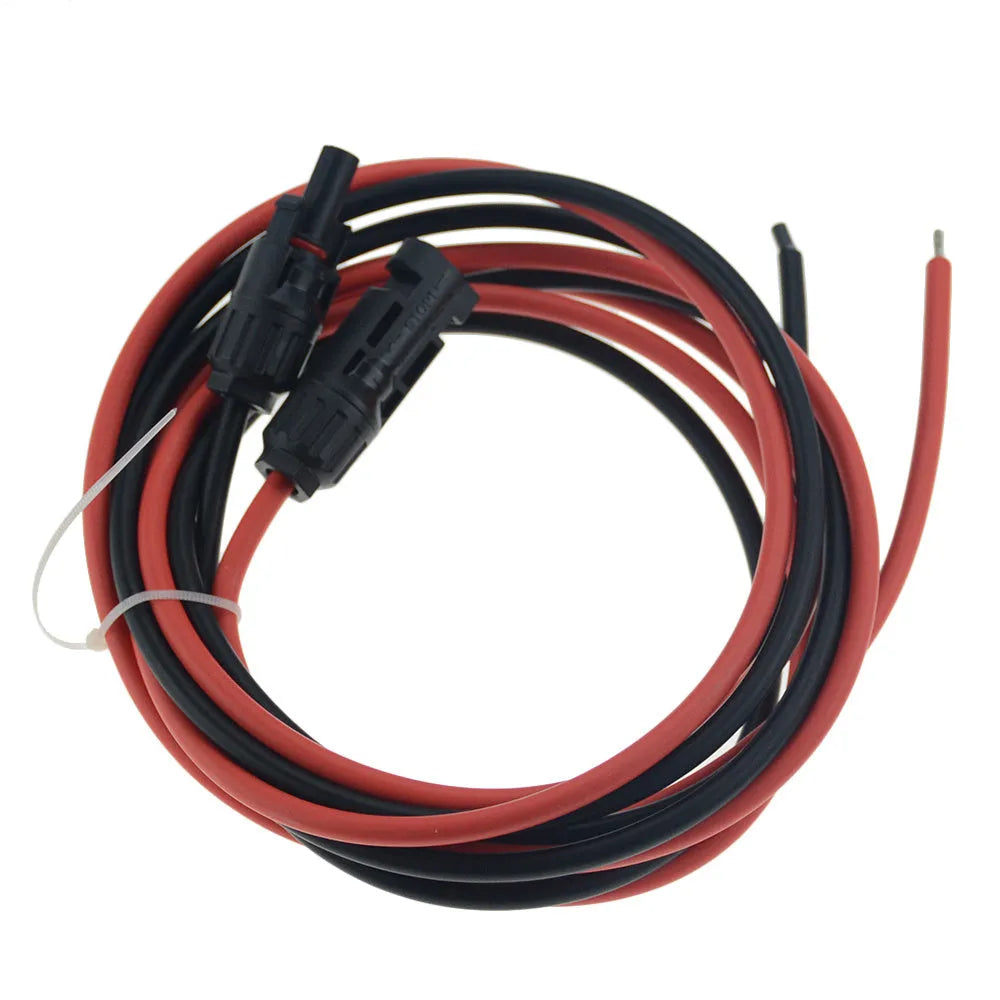

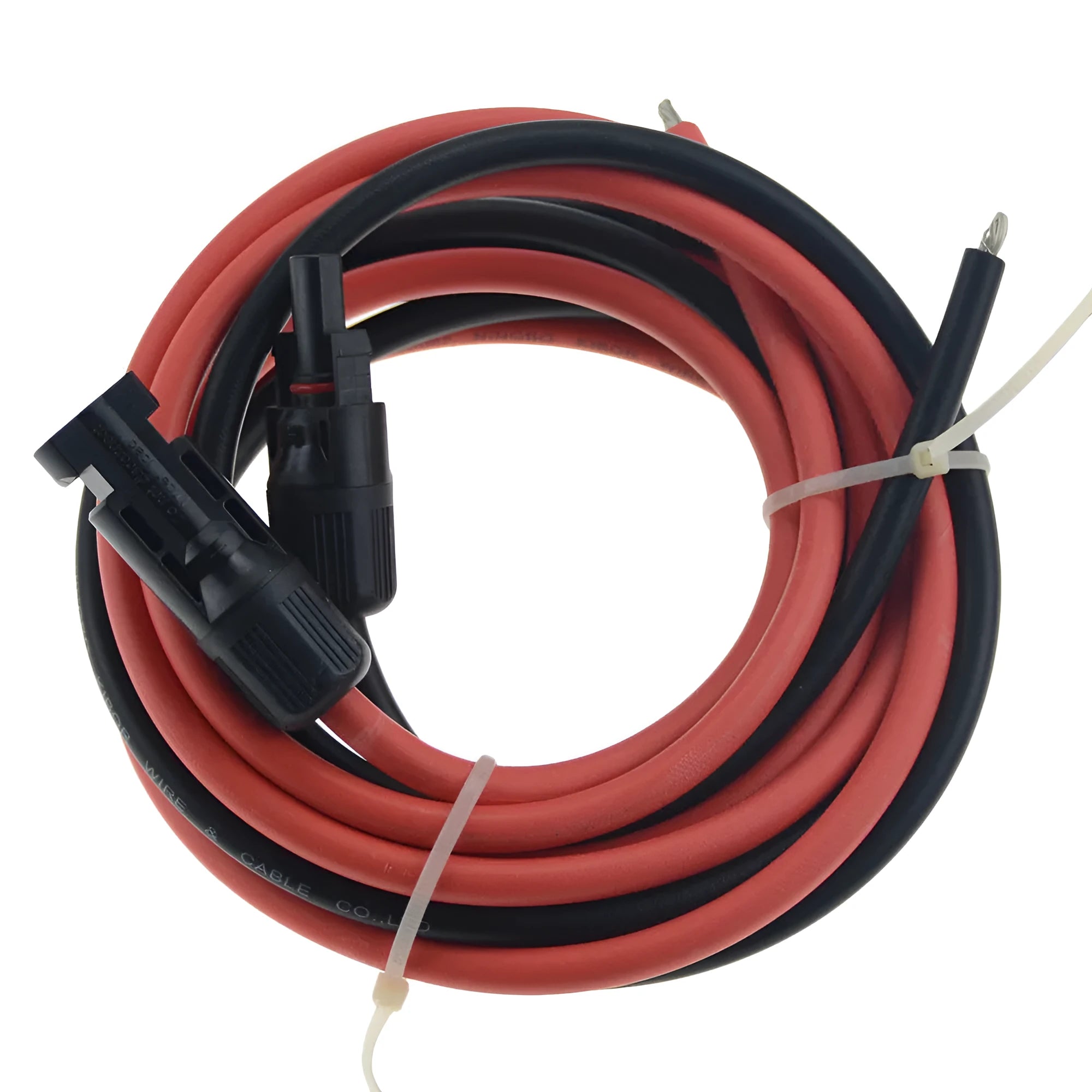

Single-Core Solar Extension Cable with MC4 Connectors for Photovoltaic Panel Connections

Designed for new energy applications, this photovoltaic extension cable provides a dedicated link between solar panels and system components. Its core construction uses tinned copper wire, chosen for its reliable conductivity and added layer of protection against corrosion, which is a practical consideration for long-term outdoor electrical installations. The cable is sheathed in a specialised low-smoke, halogen-free insulation material. This feature is particularly relevant for safety, as it is engineered to minimise the emission of toxic fumes and dense smoke in the unlikely event of a fire, contributing to a safer installation environment. The cable comes pre-fitted with industry-standard MC4 connectors, offering a secure and weather-resistant plug-and-play solution that simplifies the assembly of solar arrays.

Features and Construction

This cable is built with specific electrical and safety specifications in mind, making it a practical component for residential or commercial solar setups. Its design focuses on providing a durable and safe connection path for the generated power.

Material and Build

The conductive core is made from tinned copper wire. The tinning process applies a thin coat of tin over the copper, which helps inhibit oxidation and improves solderability, supporting long-term electrical reliability. The insulation and outer sheath are constructed from a low-smoke, halogen-free compound. In the event of high heat or flame, this material is formulated to produce significantly less opaque smoke and no halogen-based toxic gases compared to standard PVC, aligning with stricter safety standards for building and electrical codes.

Size and Practical Fit

The cable has a nominal cross-sectional area ranging from 2.5 mm² to 6 mm², which relates to its current-carrying capacity. Its maximum outer diameter falls within the 2.5 mm to 6 mm range. The insulation thickness is manufactured to meet reference standard dimensions, ensuring proper electrical isolation. To accommodate different installation layouts and distances between panels or inverters, the cable is offered in five distinct cut lengths: 1 metre, 2 metres, 3 metres, 5 metres, and 10 metres. This selection allows you to minimise cable waste and choose the most appropriate length for your specific project.

Uses and Placement

As a dedicated component for photovoltaic systems, this cable serves a clear function in channeling DC power from solar panels. Its design parameters suit a variety of installation scales and environments.

Event or Professional Use

For professional solar installers or larger commercial projects, the availability of multiple lengths (1m to 10m) provides flexibility for complex array designs. The pre-attached MC4 connectors reduce on-site termination time, while the tinned copper core offers assurance against long-term corrosion that could affect system performance. The low-smoke halogen-free (LSHF) insulation may be a specified requirement for installations in public buildings, schools, or areas with strict fire safety regulations.

Everyday Home Use

For residential solar panel systems, this cable offers a straightforward way to extend connections between roof-mounted panels and a combiner box or inverter located elsewhere. The choice of black or red sheathing allows for basic colour-coding of positive and negative lines, which can aid in correct polarity identification during the initial setup or any future maintenance. The 1m and 2m lengths are particularly useful for short jumps between adjacent panels.

Benefits and Buying Value

The value of this solar cable lies in its focused design for a specific renewable energy application, combining necessary electrical properties with practical installation features.

Reuse and Low Maintenance

The robust construction with tinned copper and LSHF insulation is intended for long-term, fixed outdoor installations. The MC4 connector system is a widely adopted standard, meaning this cable should be compatible with a broad range of solar panels and accessories, supporting potential system expansions or repairs. Its design prioritises sustained performance over years of exposure to weather elements.

Why Choose This Product

This cable provides a ready-to-use solution tailored for solar energy systems. The combination of pre-fitted MC4 connectors eliminates the need for separate connector purchases and assembly tools. The availability of five different lengths allows you to select precisely what you need, potentially avoiding the cost and clutter of excess cable. The inclusion of low-smoke halogen-free insulation represents a proactive choice for enhanced safety, which can be a deciding factor for conscious homeowners or compliant commercial installations.
