Parallel Charging Board for RC LiPo Batteries: Charge 4 Packs Simultaneously with Balanced Charging

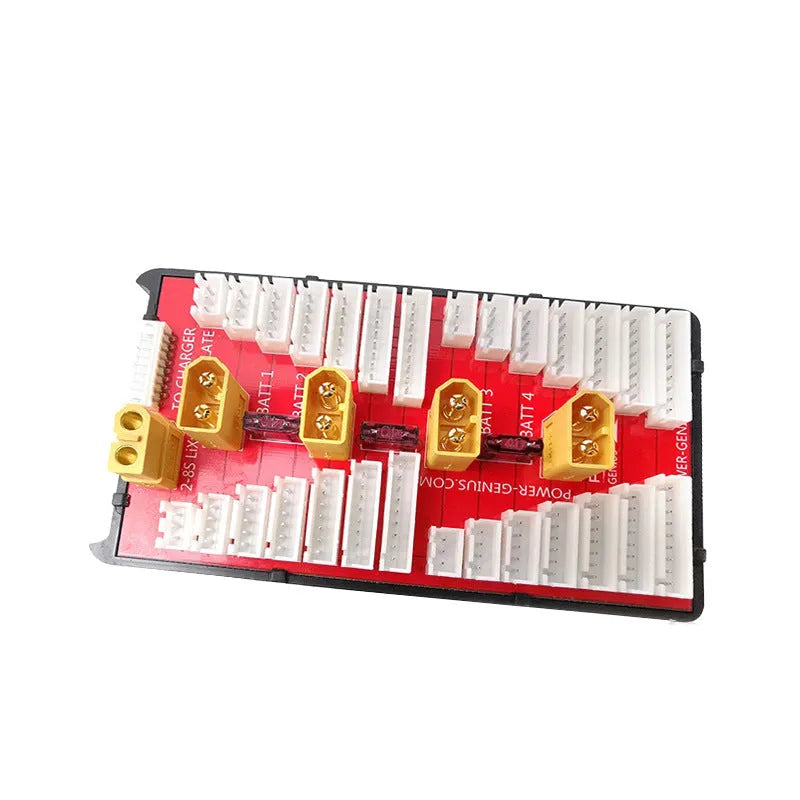

This parallel charging board is designed for users of radio-controlled (RC) vehicles, drones, and other hobbyist equipment who manage multiple lithium polymer (LiPo) battery packs. It serves as a practical adapter that connects to your existing balance charger, enabling you to charge up to four separate battery packs at the same time, provided they share the same cell configuration. The primary benefit is a considerable reduction in the time spent on charging routines, as it avoids the need to individually charge, monitor, and swap out each pack in sequence. The board incorporates specific safety features, like integrated fuses, and uses quality components such as gold-plated connectors to aim for reliable performance during parallel charging operations.

Features and Construction

The board's construction focuses on facilitating safe and efficient parallel charging for 2S to 8S LiPo battery packs. It acts as an expansion adapter for your charger, consolidating multiple battery connections into a single charging session. The design considerations prioritise managing the electrical load and providing safeguards against common issues that can arise when connecting batteries in parallel.

Material and Build

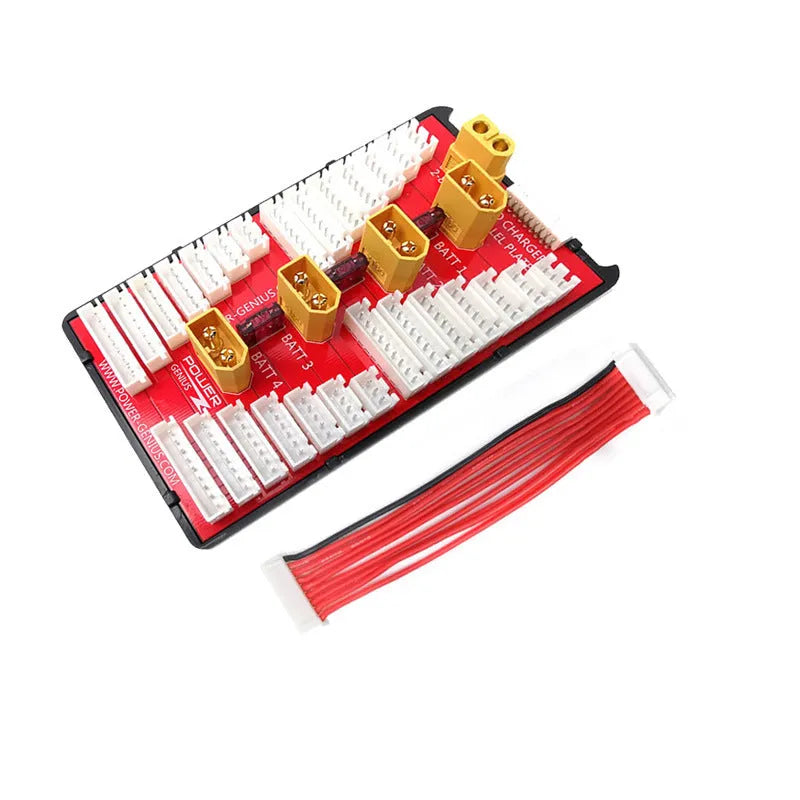

The printed circuit board (PCB) uses a thicker copper foil, which is intended to better handle the electrical current involved in charging multiple packs, with a stated support for charging currents up to 35A. All electrical connectors on the board are described as high-quality gold-plated types, which are often chosen for their resistance to corrosion and consistent conductivity. The wires leading from the balance charging ports are specified as 18AWG multi-strand silicone wire; silicone insulation is generally flexible and resistant to high temperatures, which can be relevant near chargers and batteries.

Size and Practical Fit

While exact physical dimensions are not provided, the board is a dedicated adapter designed to sit between your balance charger and multiple batteries. It comes supplied with silicone caps designed to fit over the T-style connector plugs when they are not in use. This is a practical addition to help prevent accidental short circuits caused by metal objects contacting the exposed connector pins, a simple but valuable safety measure in a workshop or charging area.

Uses and Placement

This product is specifically intended for charging lithium polymer (LiPo) batteries used in radio-controlled hobbies. Its core function is to expand the capability of a single balance charger, making it suitable for users who own several battery packs for models like drones, cars, boats, or aircraft. Proper use requires that all batteries connected to the board for a single charging session have an identical cell count, referred to as the same 'S' number (e.g., all are 4S batteries).

Event or Professional Use

For racing events, flying sessions, or professional filming using multiple drones, time between rounds or flights is often limited. This board allows pilots or drivers to recharge several depleted packs at once during breaks. By charging four packs simultaneously instead of sequentially, the total downtime can be reduced, potentially allowing for more runs or flights within a constrained timeframe. The parallel connection also means that even batteries with lower individual charge rates (C-rating) can collectively accept a higher total current, which can contribute to faster overall charging.

Everyday Home Use

For the hobbyist at home, it simplifies battery management after a day of use. Instead of spending an evening sequentially charging four separate 5000mAh packs, they can be connected in parallel. In this configuration, the charger effectively sees them as a single battery with a larger capacity (e.g., 20,000mAh for four packs) but the same voltage, allowing a full charge cycle to complete in roughly the time it would take to charge one large pack. This reduces the active monitoring and intervention required from the user.

Benefits and Buying Value

The value of this parallel charging board lies in the time savings and convenience it offers for users with multiple batteries. It turns a charger's single output into a multi-bank station, which can delay or avoid the need to invest in a more expensive, dedicated multi-port charger. The integrated safety features aim to provide some protection for both the batteries and the charging equipment.

Reuse and Low Maintenance

The board itself is a durable adapter with no moving parts, designed for repeated use over many charging cycles. Maintenance is minimal, primarily involving ensuring the connectors remain clean and the silicone caps are used when ports are empty. The inclusion of fuses provides a replaceable safety component; if a fuse blows due to an excessive voltage difference between connected batteries, it can be changed, which may protect the more costly PCB and charger from damage.

Why Choose This Product

This board offers a focused solution for a specific need: expanding charging capacity. Its key differentiators are the support for up to four battery packs, the use of 40A fuses between each group for circuit protection, and the specification of components like gold-plated connectors and thicker PCB copper. For users whose existing charger is otherwise sufficient but who need to charge more batteries in less time, this adapter provides a targeted upgrade. It is important to follow the provided usage instructions, particularly regarding matching battery cell counts and minimising initial voltage differences, for safe and effective operation.
