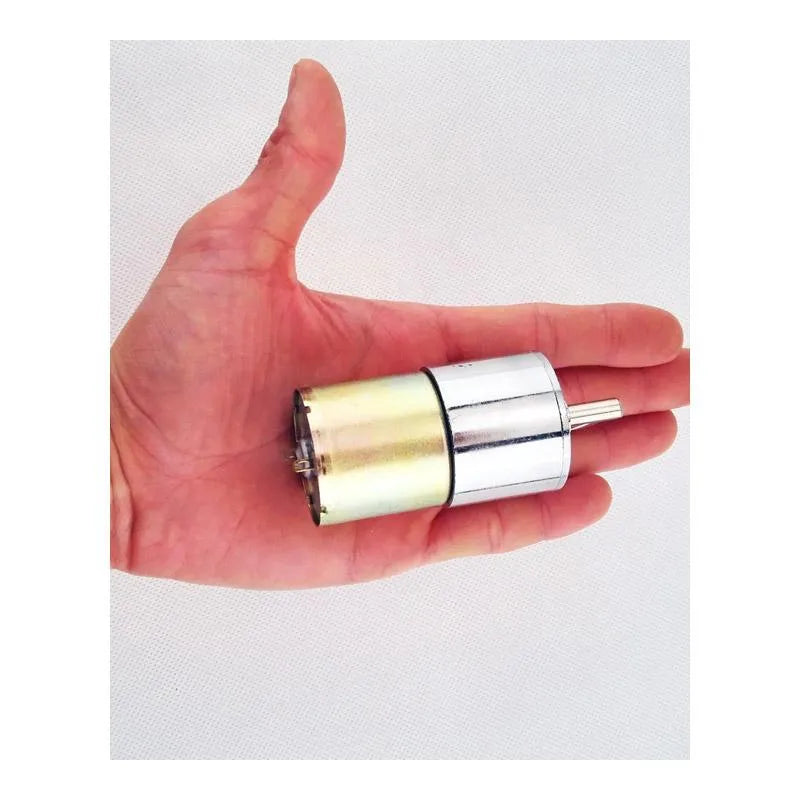

GA37RG DC Gear Motor 12V 24V 37mm Gearbox 6mm Output Shaft for Robotics and Automation

This GA37RG series DC gear motor is a compact and dependable power unit for projects that require consistent low-speed rotation with increased torque. Whether you are building a robot, an automated gate, a conveyor belt, or a custom mechanism, this motor delivers a straightforward solution with its built-in reduction gearbox. The motor runs on either 12V or 24V DC and is available in multiple speed ratings, giving you the flexibility to match your application's exact requirements. With a gearbox diameter of 37mm and a 6mm output shaft, it fits easily into standard mounting brackets and couplers. The motor operates in both clockwise and counterclockwise directions, which is essential for applications needing reversing or bidirectional movement. This product is suitable for hobbyists, makers, and professionals who need a reliable, off-the-shelf motion component.

Motor Specifications and Variants

Understanding the exact specifications helps you choose the correct motor for your project. The GA37RG series offers two voltage options and several speed choices, clearly labelled with style letters for easy ordering.

Voltage and Speed Options

The motor is available in six variants: Style A (2.5rpm at 12V), B (2.5rpm at 24V), C (6rpm at 12V), D (6rpm at 24V), E (12rpm at 12V), and F (12rpm at 24V). Each variant uses the same 37mm gearbox and 6mm shaft, so the physical dimensions are identical across the range. Slower speeds generally provide higher torque, while faster speeds are suitable for lighter loads or quicker movements. Choose a 12V variant for battery-powered or common low-voltage systems, and a 24V variant for industrial or higher-voltage setups.

Rotation and Wiring

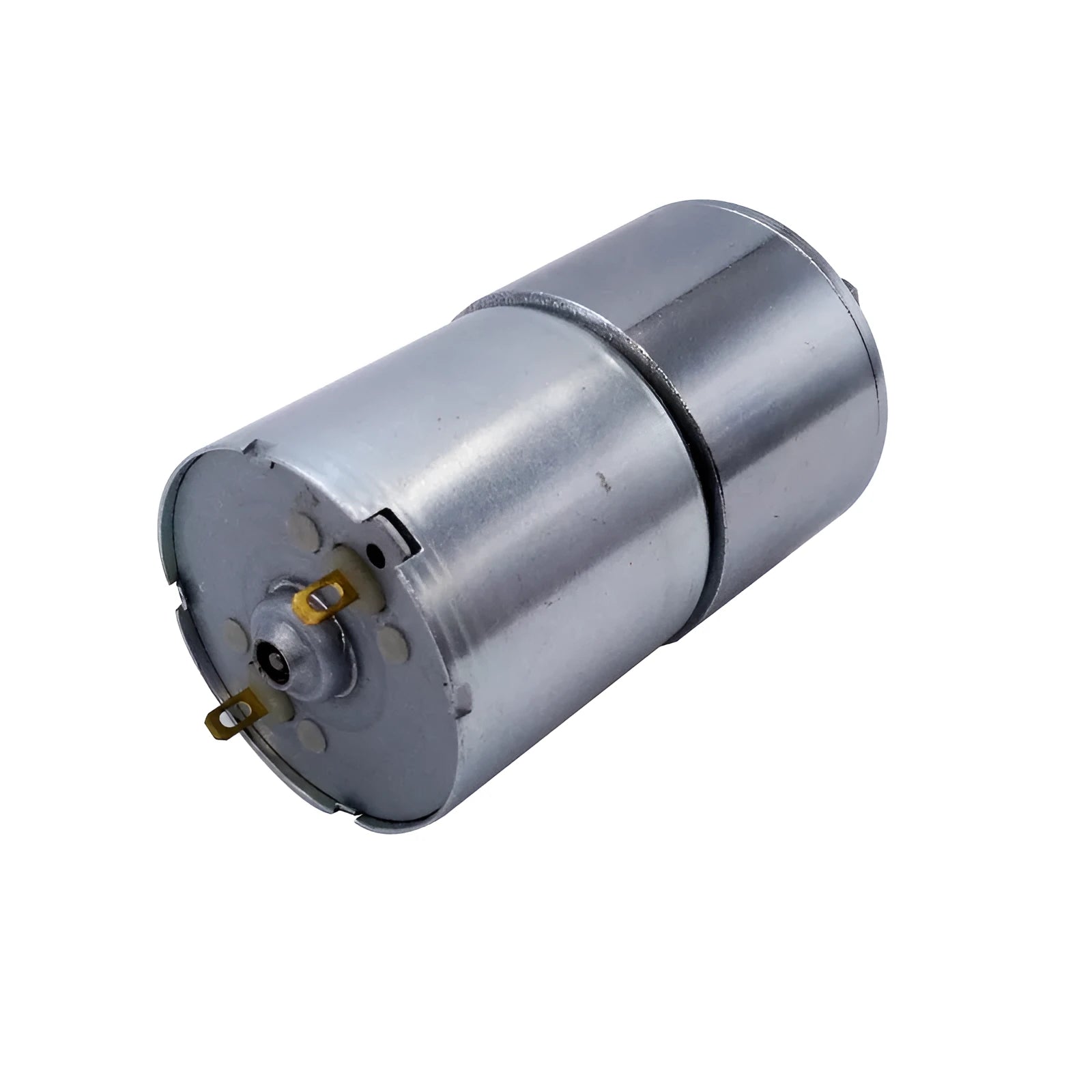

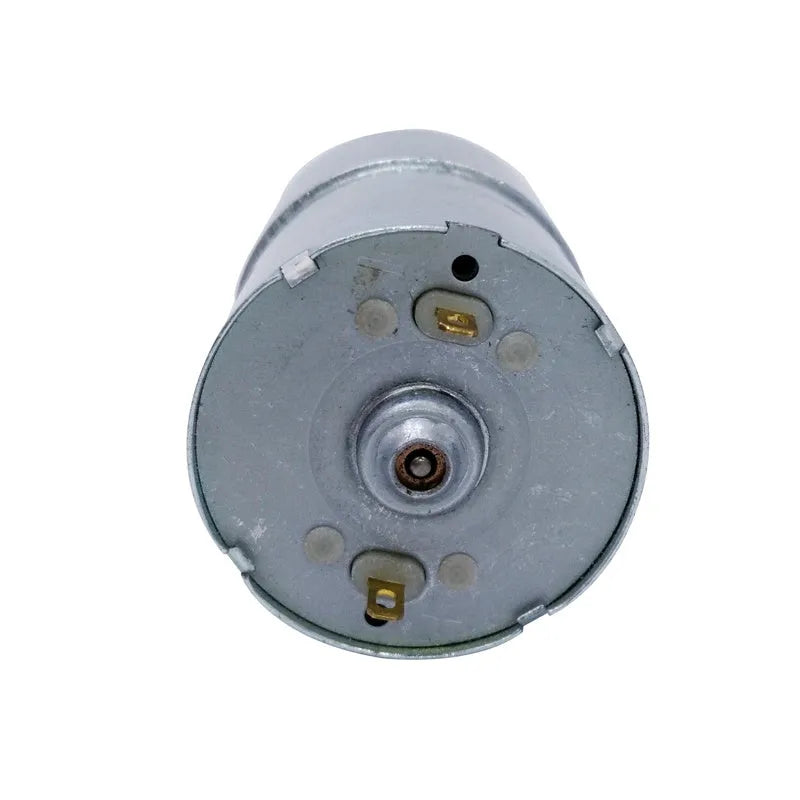

The motor supports both clockwise (CW) and counterclockwise (CCW) rotation by simply reversing the polarity of the DC supply. This gives you control over direction without needing extra mechanical components. Standard two-wire connection makes integration straightforward with most motor drivers, relays, or H-bridge modules.

Mechanical Fit and Mounting

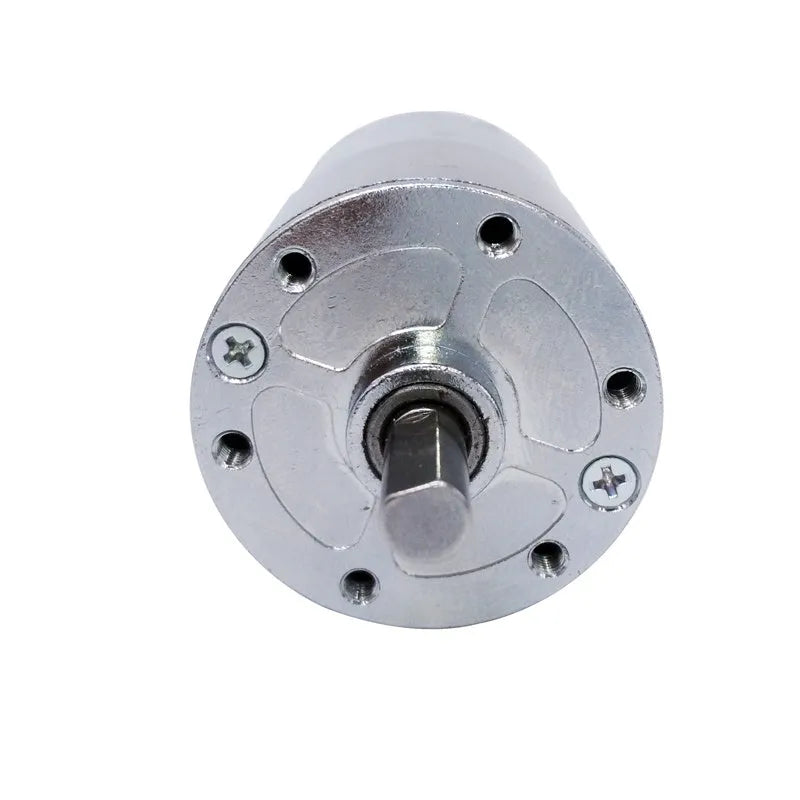

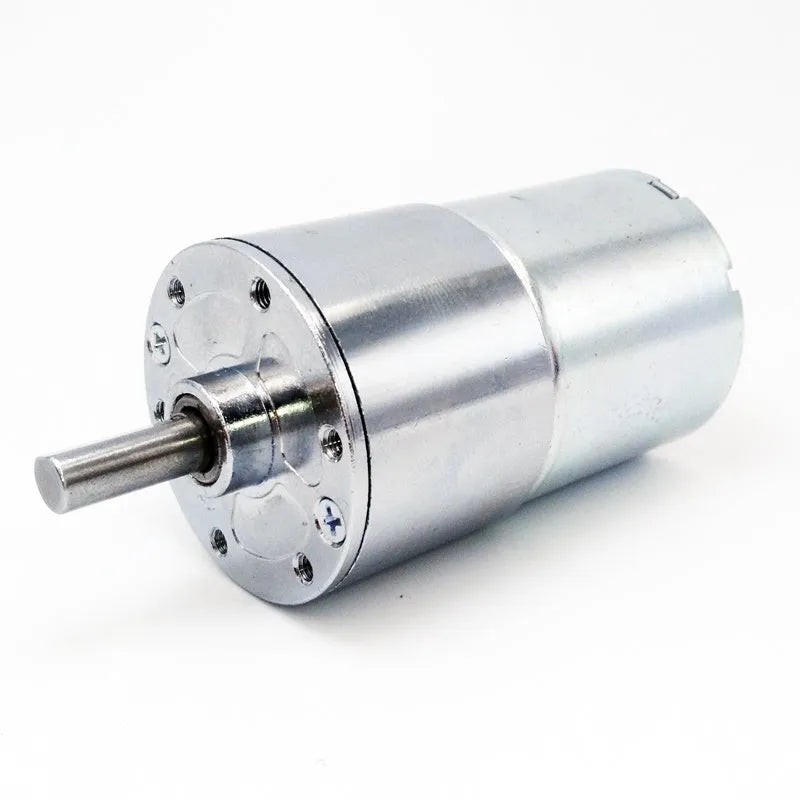

The gearbox diameter is 37mm, and the output shaft diameter is 6mm. These are common dimensions for small to medium gear motors, making it easy to find compatible coupling sleeves, pulleys, or gears. The cylindrical housing can be clamped or bracket-mounted using aftermarket holders designed for 37mm gearboxes. The output shaft length is typical for this type, allowing a secure fit for a variety of mechanical connectors.

Application Ideas and Usage

This motor is suited for a range of DIY, prototyping, and small-scale automation tasks. Its compact size and low-speed output make it particularly useful where controlled movement is needed.

Robotics and Moving Platforms

Use this motor as a drive unit for small robot wheels, tracks, or articulated arms. The low speeds (2.5 to 12 RPM) provide precise positioning and good torque for climbing or carrying loads. The CW/CCW rotation allows forward and backward motion, and the 6mm shaft can be fitted with wheels or gears directly.

Automation and Mechanism Control

Integrate the motor into automated curtains, display turntables, small conveyor belts, or valve actuators. The predictable speed and direction control make it suitable for repeatable tasks controlled by a microcontroller or timer. Always match the motor's torque to the load to avoid stalling under continuous use.

Hobby and Education Projects

This motor is ideal for science fair projects, model engineering, and teaching basic electromechanics. Its clear specifications and standard dimensions help students understand gear reduction, torque, and voltage-speed relationships. The product is also useful for custom lighting effects, rotating displays, or camera mounts.

Practical Buying Considerations

Selecting the right variant ensures your project runs correctly from the start. Consider your power source and required speed before ordering.

Power Supply Matching

Always use a regulated DC power supply within the motor's rated voltage. For 12V variants, a stable 12V supply is sufficient; for 24V variants, use a 24V supply. Overvoltage can damage the motor or reduce its lifespan. The current draw depends on load, so a power supply with a little overhead is advisable.

Reuse and Maintenance

This motor is a sealed unit and requires no routine maintenance. Keep it free from dust and moisture. If used in a dusty environment, consider a simple cover. The motor's life is determined by brush wear and bearing quality; running within rated load extends service life.

Why Choose This Product

This GA37RG motor offers a practical balance of size, speed choice, and voltage flexibility. The 37mm gearbox and 6mm shaft are standard dimensions that simplify mechanical design. With six variants to choose from, you can match the motor closely to your application without custom engineering. It is a reliable, off-the-shelf component for building motion into your project.
