35mm Adjustable Hinge Punch Locator Tool for Accurate Cabinet Door Installation

Installing cabinet and wardrobe doors hinges is a critical step in furniture assembly, where precision directly affects the final look and function. This aluminium alloy hinge locating rule is a dedicated woodworking tool designed to eliminate guesswork from this process. It provides a physical template for marking exact drill points for 35mm hinges, ensuring they are positioned consistently and flush with the door edge. The tool's standout feature is its adjustable margin, allowing you to select the precise setback required for your project from four predefined settings. This practical design makes it a valuable asset for household DIY, helping achieve a professional-standard finish on built-in wardrobes, kitchen cabinets, and other fitted furniture without specialised skills.

Features and Construction

This tool is built around core functionalities that address specific challenges in hinge installation. Its construction prioritises materials chosen for practical performance in a workshop or home DIY environment.

Material and Build

The main frame of the locator is made from aluminium alloy. This material choice offers a practical compromise, providing sufficient rigidity to maintain the tool's shape and accuracy during use, while remaining lightweight for comfortable handling. The integrated marking punch is a hard alloy blade. This component has undergone a high-temperature heat treatment process, a method used to significantly increase the hardness of the metal. This results in a cutting edge that stays sharp through repeated use on wood surfaces and is more resistant to wear, ensuring the tool remains effective over time.

Size and Practical Fit

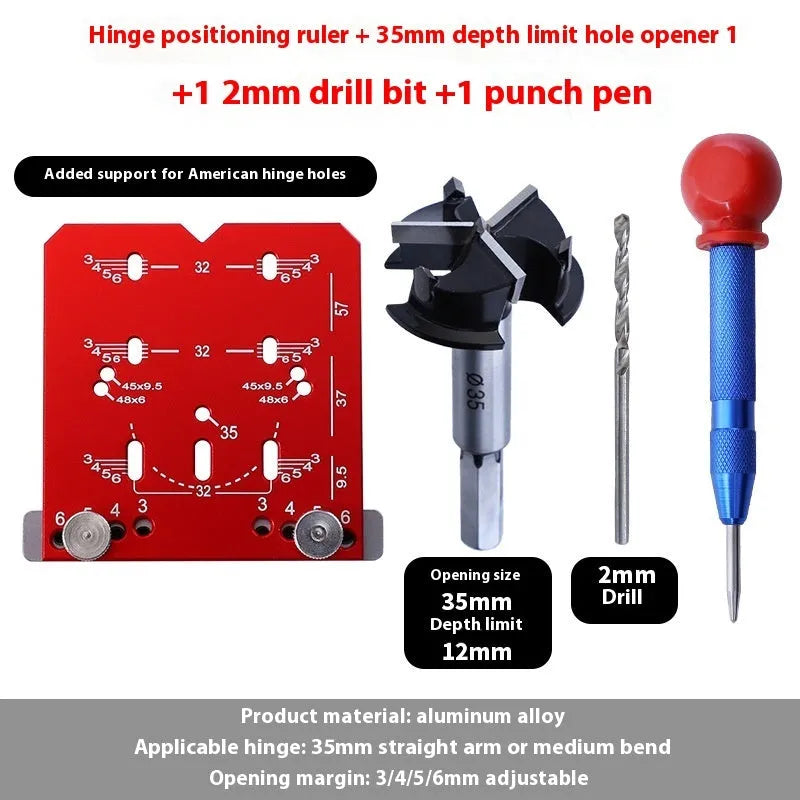

The tool is specifically sized and configured for compatibility with a standard hinge type: the 35mm extended arm or middle bend hinge commonly used in European-style cabinet and wardrobe doors. This precise compatibility ensures the guide holes and layout of the locator align correctly with the screw holes on the hinge plate. The most significant functional aspect is the adjustable margin selector. It allows the user to choose an opening margin—the distance the hinge is set back from the door's edge—of either 3mm, 4mm, 5mm, or 6mm. This adjustability covers a range of common installation specifications, making the tool versatile for different cabinet designs and personal preferences regarding door overlay.

Uses and Placement

The primary application of this tool is in the field of furniture assembly and installation, bridging the gap between professional woodworking equipment and accessible home DIY.

Event or Professional Use

For tradespeople such as kitchen fitters, wardrobe installers, or carpenters undertaking multiple fitting jobs, consistency and speed are crucial. This hinge locator allows for rapid, repeatable marking of hinge positions across multiple doors on a single project or across different jobs. The adjustable margin feature means one tool can be used for various cabinet brands or customer specifications that require different hinge setbacks, reducing the need for multiple specialised jigs. The durable aluminium and hard alloy construction is suited to withstand the demands of daily professional use.

Everyday Home Use

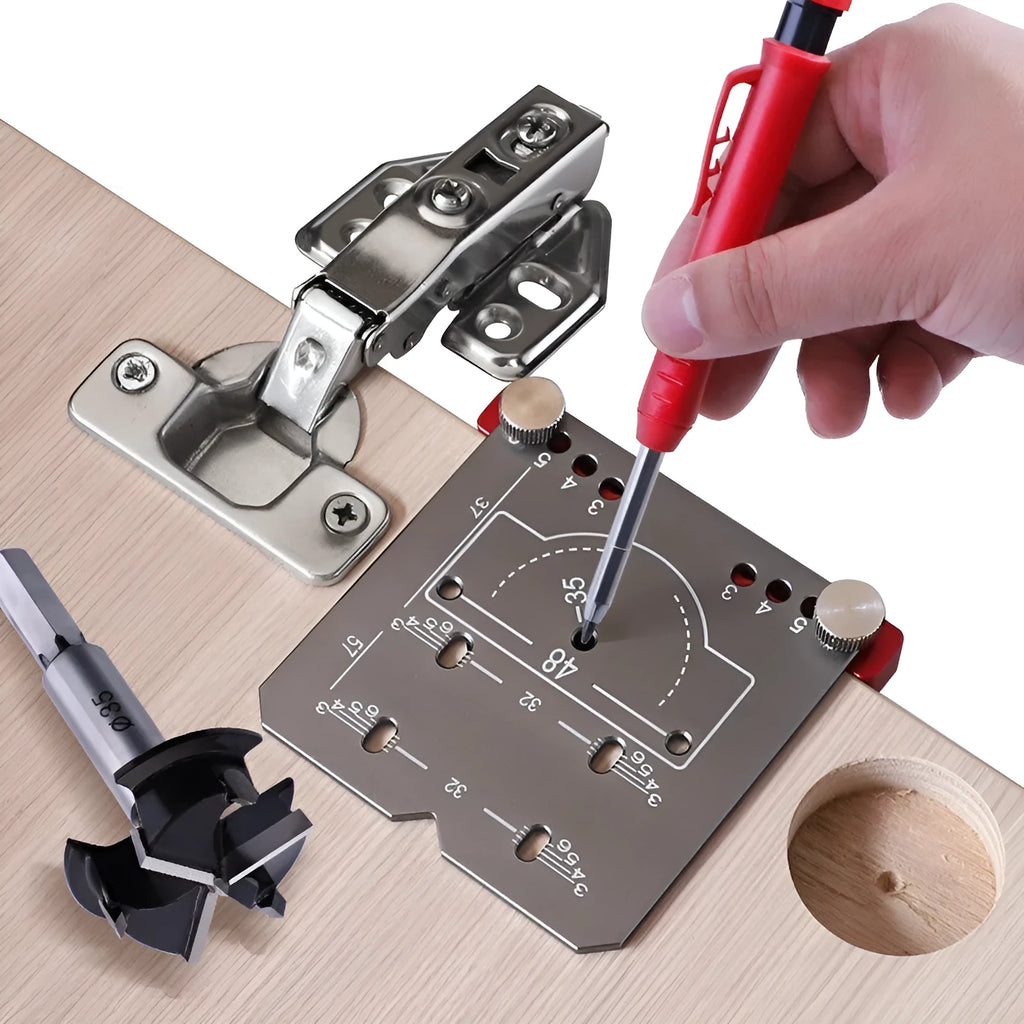

For the home DIY enthusiast assembling flat-pack wardrobes, building custom shelving units, or refurbishing kitchen cabinets, achieving straight and evenly hung doors can be challenging. This tool simplifies one of the most technically demanding parts of the process. By clamping or holding the locator against the door edge, the user can confidently punch mark the exact spots for drilling, removing measurement errors and the risk of misaligned hinges that cause binding or uneven gaps. It transforms a task that typically requires careful calculation and a steady hand into a straightforward, guided operation, empowering users to tackle more complex furniture projects with confidence.

Benefits and Buying Value

The value of this woodworking tool lies in its focused functionality, material durability, and the practical problems it solves for anyone involved in cabinet installation.

Reuse and Low Maintenance

As a dedicated, solid-bodied tool rather than a disposable template, it is designed for reuse across many projects. The wear-resistant hard alloy blade maintains its sharpness, ensuring clean, clear guide marks over time. The aluminium body does not rust and is easy to clean from sawdust. This longevity means it represents a one-time purchase that can serve for numerous future DIY tasks, from building new furniture to adjusting or replacing doors on existing units, offering sustained value.

Why Choose This Product

Choosing this specific hinge locator centres on its combination of specificity and adjustability. Its design for 35mm hinges ensures accuracy for a vast majority of modern cabinet doors. The four adjustable margin settings provide a level of versatility not found in fixed templates, making it adaptable to different aesthetic or functional requirements. When compared to more generic marking methods or the alternative of purchasing multiple fixed-location jigs, this single adjustable tool offers a more efficient and cost-effective solution for achieving precise, professional-looking hinge installations in a home workshop setting.
